VILA10
Double 10" two-way two-unit coaxial vertical line array full frequency speakers
OVERVIEW
TECH SPECS

The Vila10 is a compact vertical array speaker; Built-in bipolar arrangement 2x10"(250mm)

Low frequency unit, a 3 "(75mm) high frequency compression driver with an acoustic lens waveguide device; new

Designed three-point hanging system with high strength stainless steel connectors, each group can be hung up to 16 notes

Box; Has a safety factor of 7:1; And the left and right are configured with two mechanical optimization handle; after

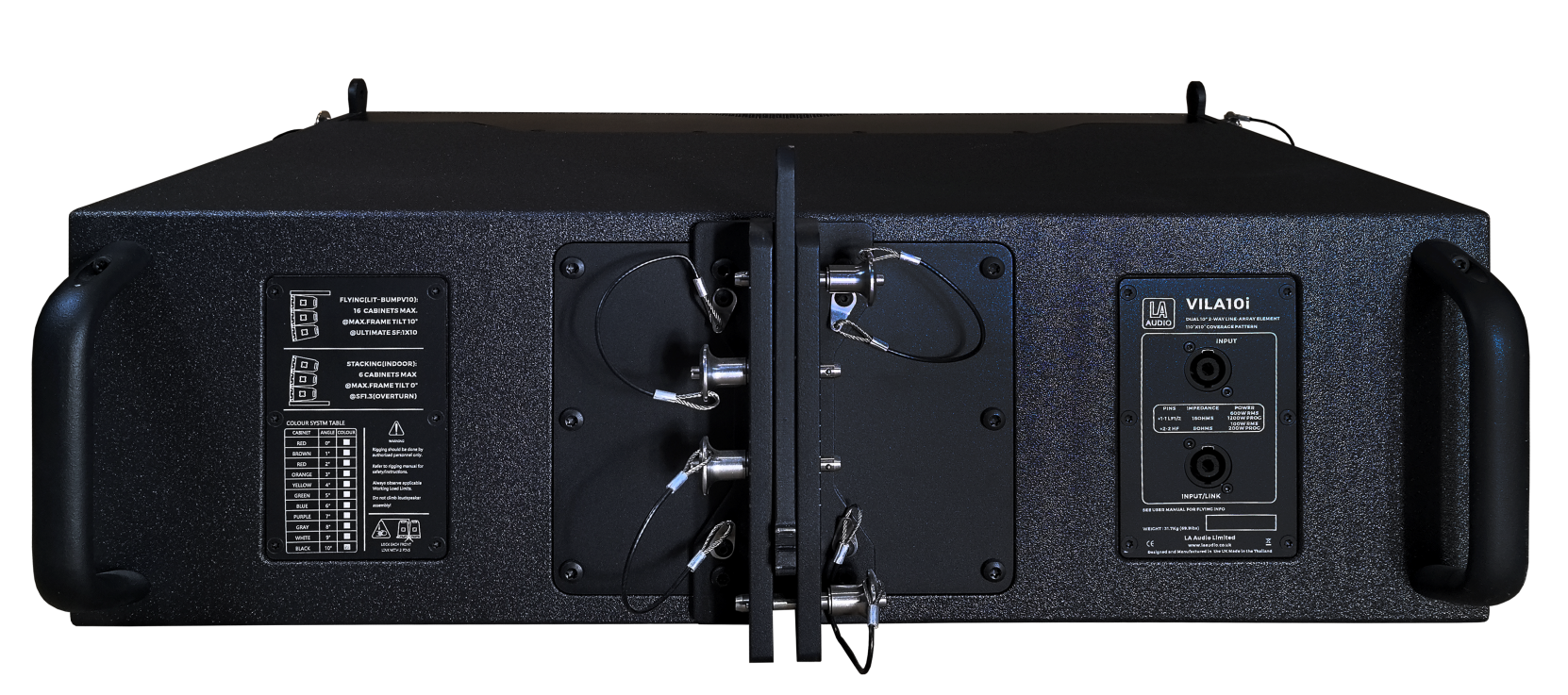

Two Neutrik® NL4MP socket in parallel on the back terminal; Triangle hexagon custom hole steel mesh inside

With sound permeable AIRNET mesh cloth.

Product features

▪Vertical line array design of super compact box

▪Built-in2 x 10" neodymium magnetic steel bass unit

▪True line array design,The Angle between the boxes (1° ~ 12°) is continuously adjustable

▪110° horizontal coverage Angle

▪Integrated 3-point hoisting system

▪All-weather design for outdoor use

Acoustic properties

Type:  three-unit two-way coaxial vertical line array full frequency speakers

Components:LF:2×10″neodymium(260mm)/3″(75mm)Voice-coil

HF:1×1.4″neodymium(36mm)exit/4″(100mm)Voice-coil

Coverage Pattern(H×V):110º/0°-12°(1°increment)

Frequency Response(+/-5dB):65Hz - 19kHz

Sensitivity(1W/1M):113dB

Max SPL (peak):133dB / 139dB Peak

Impedance:HF:16Ω / LF:16Ω

Power Handling(AES/peak):600W AES / 2400W Peak

Frequency division mode:active

Dimensions(H×W×D):283X630X460mm(11.14" x 24.80" x 18.11")

Weight:25.5kg (56.21lbs)

Connect

Connector:2 x Neutrik® NL4MP

Plug interface:LF:1+,1-;HF:2+,2-

Cabinet material

Box material: 15mm (0.6 ″) Baltic multi-layer birch plywood

Box spray: Black wear-resistant polyurea spray

Mesh cover material: triangular hexagonal customized hole steel mesh with sound permeable AIRNET mesh

Mesh spraying: Double anti-corrosion coating, galvanized and black polyester powder

 Install application

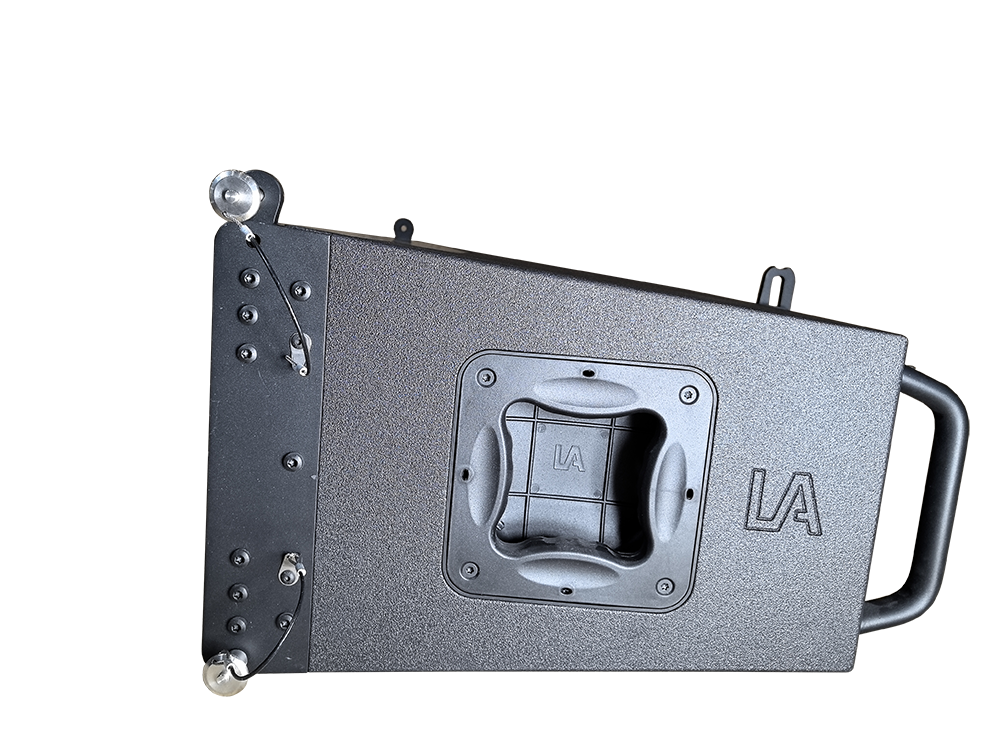

Handle form: left and right two mechanical optimization handle

Lifting hardware: integrated three-point hanging system

Front suspension system:Aluminum quick link structure

Back suspension system: High strength steel quick link structure and stainless steel special bolt

Support seat: N/A

All weather / color version: optional

Optional accessories:Suspension bracket VILA10-BAR-FF, fitting connector
