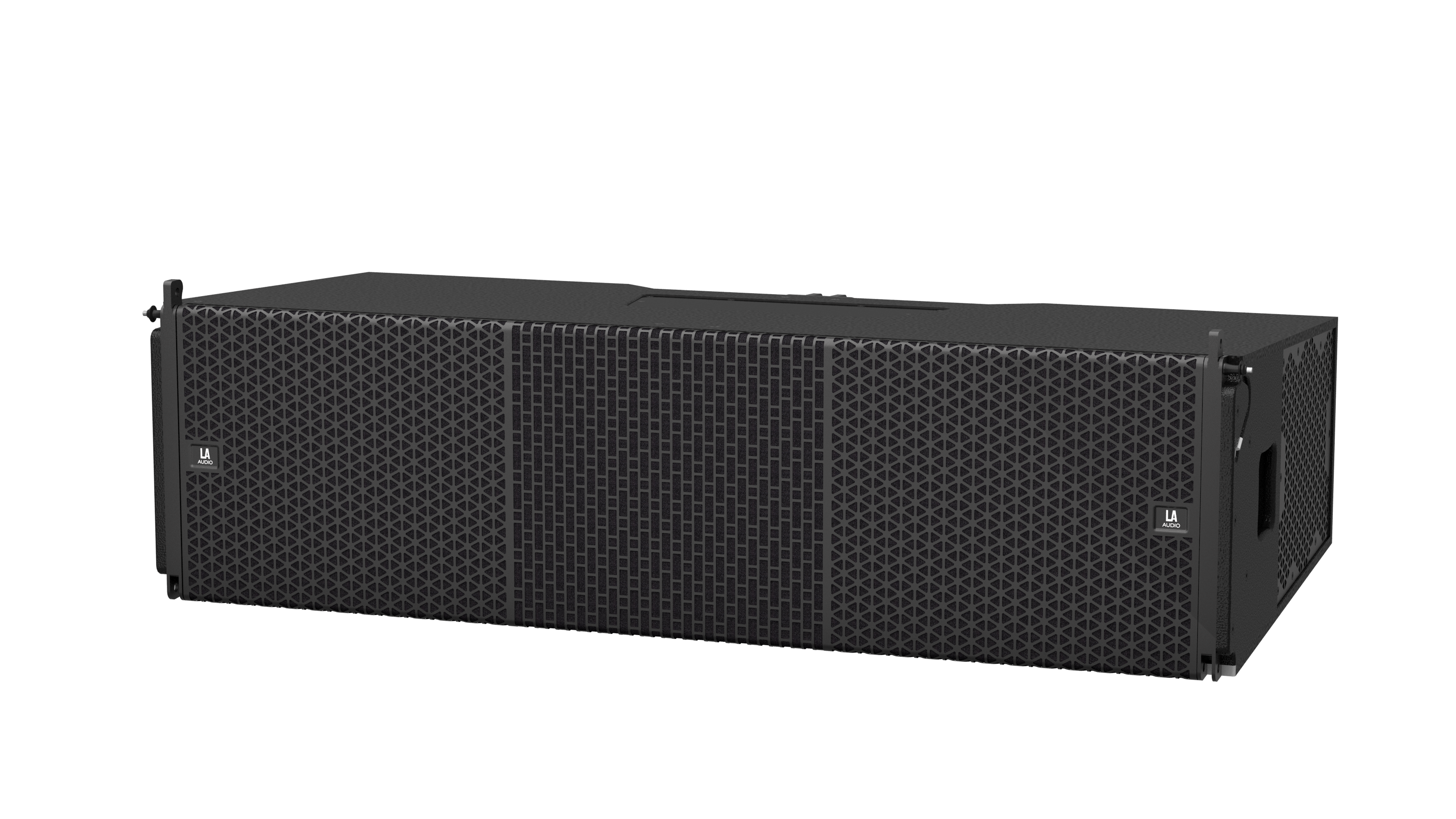

VILA5 is a compact and systematic precision linear array speaker;Full frequency system horn unit

 are customized by unit factory according to the highest standards in the industry,consists of a high-power inline low frequency unit with a coil diameter of 3 "(75mm) and a 3" (75mm) composite polyester diaphragm compression high frequency unit;New three-point simple mounting hanger, each group can hang up to 24 speakers;It has a safety factor of 7:1;And equipped with two mechanical optimization of the pump;The rear terminal plate has two parallel Neutrik NL4MP socket.Triangular hole hexagonal combination of special steel mesh with internal acoustic mesh cloth.

Product features

▪Vertical line array design of super compact box

▪Built-in1 x 10" coaxial unit

▪True line array design,The Angle between the boxes (1° ~ 10°) is continuously adjustable

▪120° horizontal coverage Angle

▪Integrated 3-point hoisting system

▪Built-in frequency division design to simplify system applications

▪All-weather design for outdoor use

Acoustic properties

Type: two-way two-unit coaxial vertical line array full frequency speakers

Components：LF：10″neodymium(250mm)/3″(75mm)Voice-coil

HF：1.4″neodymium(36mm)exit/3″(75mm)Voice-coil

Coverage Pattern（H×V）:120º × 10º

Frequency Response(+/-5dB)：67Hz - 20kHz

Sensitivity(1W/1M)：112dB

Max SPL (peak)：132dB / 138dB Peak

Impedance:HF：16Ω / LF：16Ω

Power Handling（AES/peak）：300W AES / 1200W Peak

Frequency division mode:active

Dimensions(H×W×D):300 X 353 X 323mm(11.81" x 13.89" x 12.71")

Weight:15.7kg (35.27lbs)

Connect

Connector：2 x Neutrik® NL4MP

Plug interface：LF：1+，1-；HF：2+，2-

Cabinet material

Box material: 15mm (0.6 ″) Baltic multi-layer birch plywood

Box spray: Black wear-resistant polyurea spray

Mesh cover material: triangular hexagonal customized hole steel mesh with sound permeable AIRNET mesh

Mesh spraying: Double anti-corrosion coating, galvanized and black polyester powder

Install application

Handle form: left and right two mechanical optimization handle

Lifting hardware: integrated three-point hanging system

Front suspension system:Aluminum quick link structure

Back suspension system: high strength steel quick bolt

Support seat: N/A

All weather / color version: optional

Optional accessories:Suspension bracket VILA5-BAR-FF, fitting connector
