Top62
Top62 is a pendant loudspeaker.
OVERVIEW
TECH SPECS

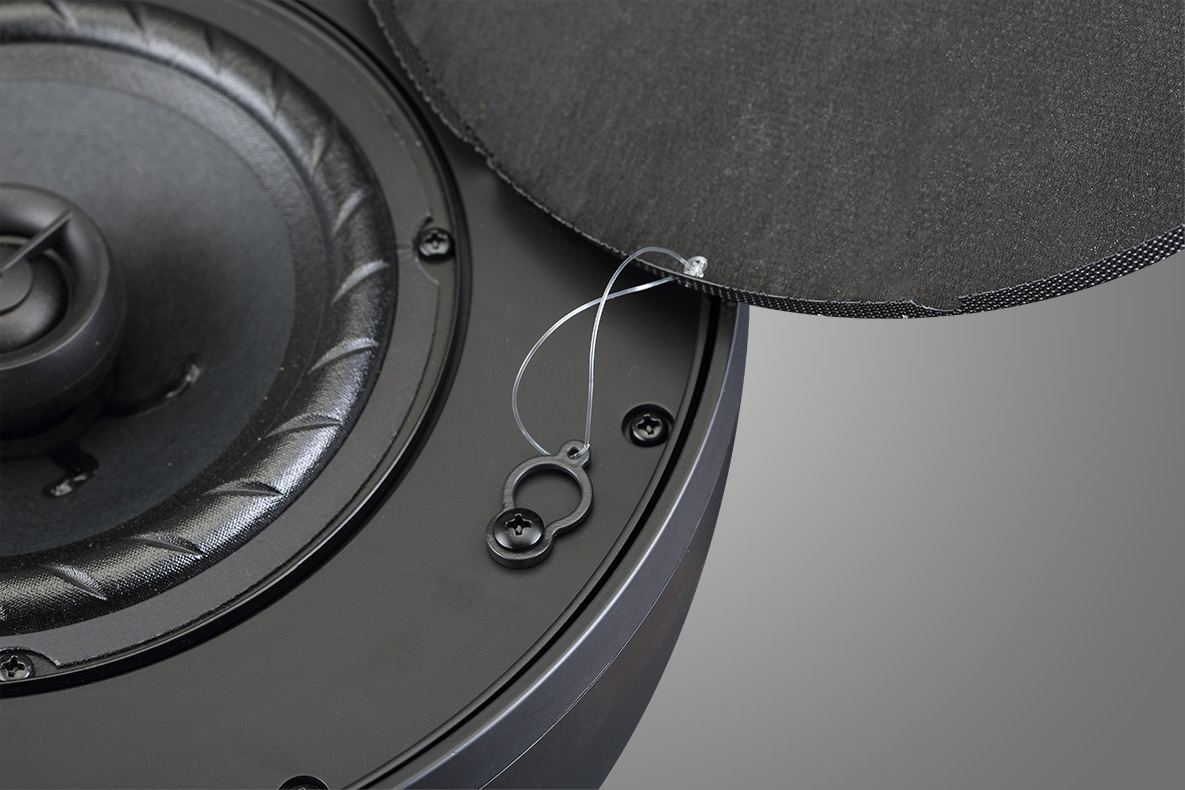

Top62 is a high-performance suspension loudspeaker specially designed for fixed installation applications. White or black cabinets can be selected to suit the installation environment, such as retail malls, hotels, gyms and other venues that require discrete sound reinforcement. Top62 uses a two-way design to ensure that it can maintain the best performance in the important mid-band. The specially designed box body is made of fire-resistant plastic, which has an elegant appearance and improves the safety level. The coaxially installed high-frequency driver provides a very consistent time domain response, and the special synthetic rubber is used around the driver to ensure high definition and smooth frequency response. The integrated transformer can be used for high impedance line connection operation, simplifying system wiring. The transformer is a high-quality E.I core design, which can perfectly match the 16Ω bass and tweeter. The rear power switch can be easily adjusted after the speaker is installed. All the plastics of the speaker are UL-94V-0. The original package contains two sets (main crane and safety rope) 2.5-meter metal suspension wire and GRIPPLE self-locking wire buckle

Model No.

Top62

HF Driver

1”

LF Driver

6.5”

Rated  Power  (EIA-RS426B)

53W

Nominal Impedance

16Ω

Transformer Tap@100V

4W,8W,16W,32W,NA

Transformer Tap@70V

2W,4W,8W,16W,32W

Transformer Tap@25V

0.3W,0.5W,1W,2W,4W

Coverage Pattern

100°

Sensitivity (1W/1M)

92dB

SPL(max)

108dB

Frequency Response  (-10dB)

75Hz-20KHz

Dimensions  (Diameter*Height)

φ267mm×231.4mm

Panel Material

fire proof plastic

Backcan Material

fire proof plastic

Connector

four position ceramic  terminal

Unit Weight

6.4kg
